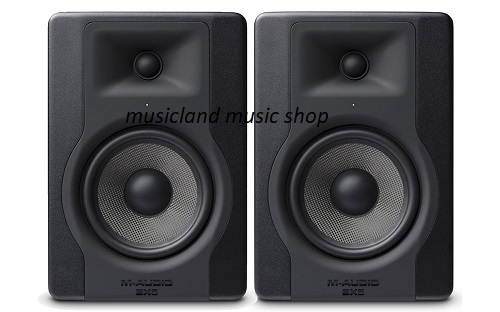

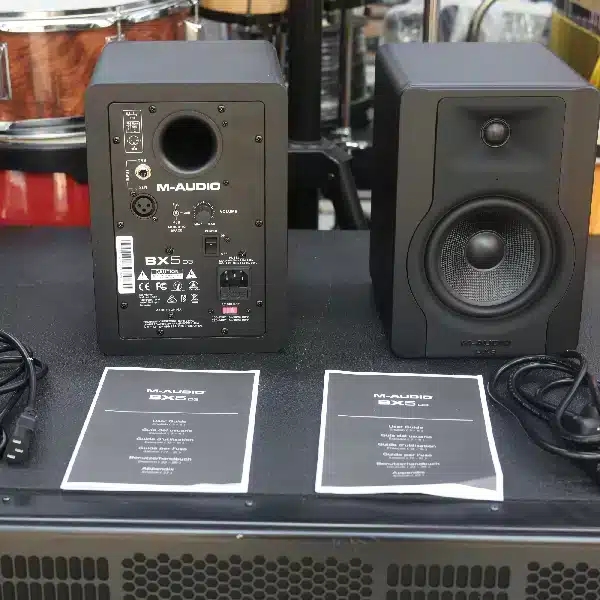

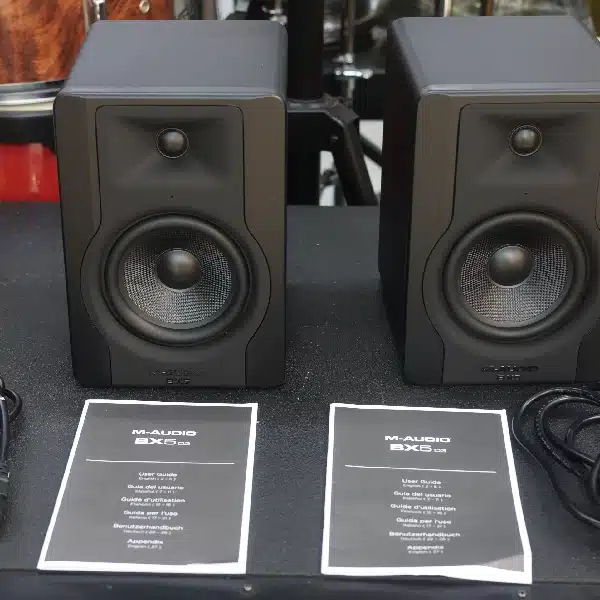

M-Audio BX5 D3 Studio Monitors

Sold as a pair

A studio monitor is no ordinary loudspeaker. Unlike a conventional speaker, a true monitor must be unerringly accurate, with a flat frequency response and vanishingly low distortion. It has to tell you, the music producer— dependably and unquestionably—exactly what is or is not in your recording. In a studio-grade monitor speaker, there is no place for the usual list of speaker colorations and limitations prevalent in conventional loudspeakers. Response peaks\dips, uneven polar response, high THD, nasal midrange, bloated mid-bass, and crossover-induced phase incoherence do nothing but undermine the confidence demanded for superior mix performance.

A monitor’s drivers are the heart and soul of its performance. Driving the low-end and midrange, BX5-D3’s 5-inch military-grade Kevlar® woofers are rigid and lightweight, delivering outstanding transient response whist negating unwanted “cone breakup.” BX5- D3’s treated silk dome tweeter provides the perfect combination of low mass and the absence of audible resonances that plague conventional tweeters. Together, the BX drivers deliver critical detail, nuance and dynamic accuracy, so your mixes have the veracity and transparency you demand.

Features

Bi-amplified design with 100 watts of RMS power for powerful and accurate sound

5'' Kevlar low-frequency driver with a high-temperature voice coil and damped rubber surround

The 1'' natural silk tweeter provides astounding transient details

New computer-optimised tweeter waveguide delivers precise imaging

Acoustic Space Control enables you to fine-tune the low-end response to your listening space

Optimized rear port provides extended low-frequency response

1/4'' balanced/unbalanced and XLR balanced inputs allows you to connect to audio interfaces, mixers, synthesizers, DJ gear and more

Volume control enables you to dial in the ideal monitor playback level for your session or space

Exceptional frequency response with a wide range of 52Hz to 35kHz to cover a full musical spectrum

Handy front panel LED enables perfect positioning of monitor angle in relation to your listening position.

Specifications

Monitor Type: 2-way near-field studio reference monitor

Low Frequency Driver: 5'' (127mm) kevlar curved cone with high temperature voice coil & damped rubber surround. Magnetically shielded

High Frequency Driver: 1'' (25mm) magnetically shielded natural silk dome

Frequency Response: 52Hz - 35kHz

Crossover Frequency: 2kHz

Low Frequency Amplifier Power: 65W

High Frequency Amplifier Power: 55W

Maximum Peak SPL: 105dB

Input Sensitivity: 85mV pink noise input produces 96dBA output SPL at 1 meter with volume control at maximum

Input Connectors:

1 x XLR balanced

1 x TRS balanced/unbalanced

Input Impedance:

10kOhm balanced

20kOhm unbalanced

Polarity: Positive signal at + input produce outward low frequency cone displacement

Protection:

RF interference

Output current limiting

Over temperature

Turn On/Off transient

Subsonic filter

External mains fuse

Voltage:

100 - 120V, 50/60Hz

220 - 240V, 50/60Hz

Power Consumption: 100W

Fuse:

100 - 120V: T1.6AL 250V

220 - 240V: T1AL 250V

Cabinet: Vinyl-Laminated High-Acoustic-Efficiency MDF

Dimensions (W x D x H): 6.9'' x 7.8'' x 10'' / 176mm x 197mm x 254mm

Weight: 13.2lbs / 6kg
