Engineered for unmached professional quality and durability studio audio production :
A studio monitor is no ordinary loudspeaker. Unlike a conventional speaker, a true monitor must be unerringly accurate, with a flat frequency response and vanishingly low distortion. It has to tell you, the music producer—dependably and unquestionably—exactly what is or is not in your recording. In a studio-grade monitor speaker, there is no place for the usual list of speaker colorations and limitations prevalent in conventional loudspeakers. Response peaks\dips, uneven polar response, high THD, nasal midrange, bloated mid-bass, and crossover-induced phase incoherence do nothing but undermine the confidence demanded for superior mix performance.

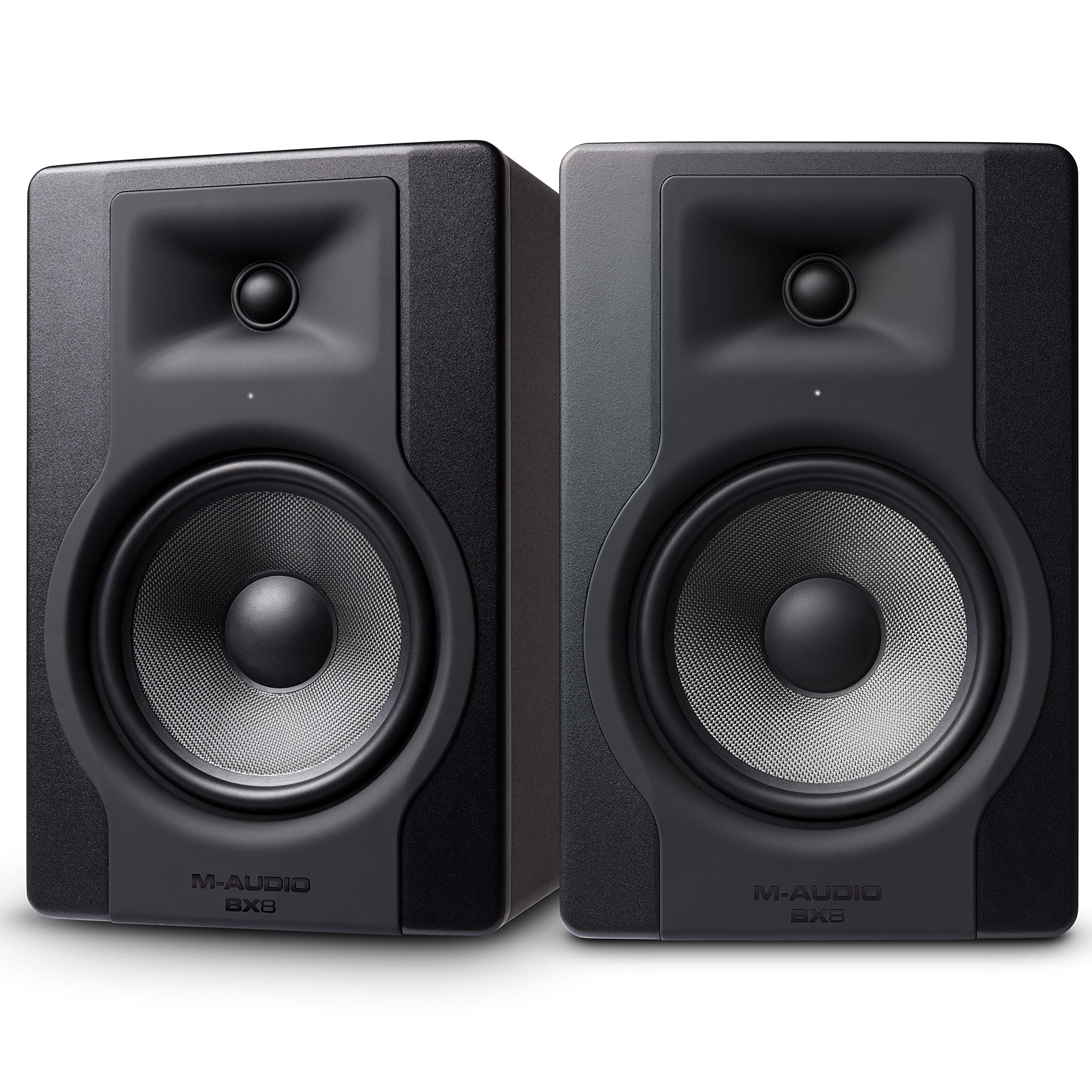

Listen with confidence: with M-Audio’s BX8 D3 studio reference monitors, you’ll hear everything in lifelike detail, so your mixes and recordings will sound their best!
Monitor Performance Starts with Driver Excellence
A monitor’s drivers are the heart and soul of its performance. Driving the low-end and midrange, BX8-D3’s 8-inch military-grade Kevlar® woofers are rigid and lightweight, delivering outstanding transient response whist negating unwanted “cone breakup.” BX8-D3’s treated silk dome tweeter provides the perfect combination of low mass and the absence of audible resonances that plague conventional tweeters. Together, the BX drivers deliver critical detail, nuance and dynamic accuracy, so your mixes have the veracity and transparency you demand.
These are monitors that take your music as seriously as you do.
Features
- Bi-amplified design with 150 watts (80 LF, 70 HF) for powerful, accurate sound
- 8” Kevlar low-frequency driver with high-temp voice coil and damped rubber surround
- 1.25” natural silk dome tweeter delivers superb transient details
- Computer-optimized tweeter waveguide for precise imaging
- Acoustic Space Control to fine-tune low-end response to your room
- Optimized rear port for extended low-frequency response
- XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers DJ gear, and more
- Volume control enables you to dial in the perfect monitor playback level
- Wide range 37-22kHz frequency response covers full musical spectrum Front panel LED shines brightly when speaker is positioned at ideal monitor angle
Specifications
- Type: 2-way near-field studio reference monitors
- Low Freq. Driver: 8 inch (203 mm) Kevlar curved cone with high temperature voice coil and damped rubber surround, magnetically shielded
- High Freq. Driver: 1.25 inch (32mm) magnetically shielded natural silk dome
- Frequency Response: 37Hz – 22kHz
- Crossover Frequency: 1.9kHz
- Low Freq. Amplifier: Power: 85W
- High Freq. Amplifier: Power: 75W
- Maximum Peak SPL: 110dB
- Input Sensitivity: 85mV pink noise input produces 96dBA output SPL at 1 meter with volume control at maximum
-

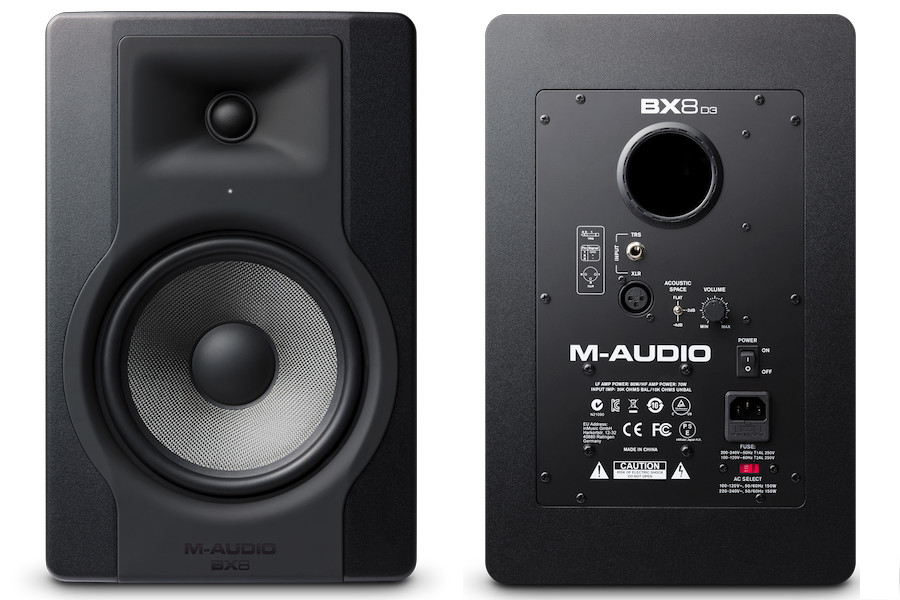

Input Connectors:
- 1x XLR balanced input connector
- 1x TRS balanced/unbalanced input connector
- Input Impedance: 10kΩ balanced, 20kΩ unbalanced
- Polarity: Positive signal at + input produce outward LF cone displacement
- Protection: RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse
- Power Requirements: Factory-programmed for 115V ~50/60Hz, 230V ~50/60Hz, or 100V ~50/60Hz
- Cabinet: Vinyl-laminated high-acoustic-efficiency MDF
-
Dimension: (height x width x depth):
- 15in. x 10in. x 12in.
- 384mm x 250mm x 302mm
- Weight (without packing): 26.4lbs., 11kg
