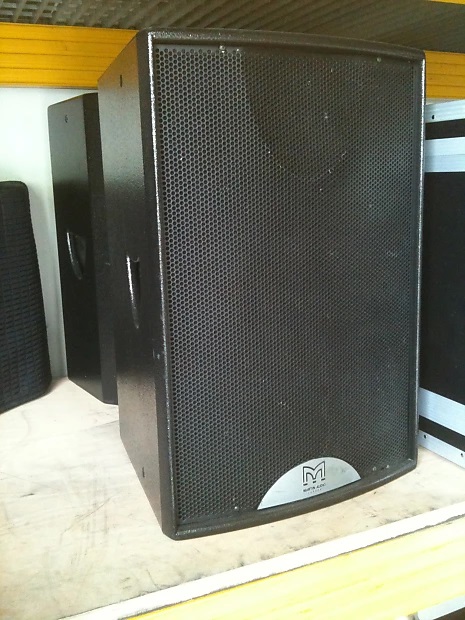

high power Blackline F15+is a high performance, wide-bandwidth system in a compact and efficient package.Extended frequency response is provided by a new 15” (380mm) LF driver and a new 1.4” (35mm) exit compressiondriver mounted on a rotatable 80 ̊ x 50 ̊ constant directivity HF horn. The new LF driver features a tough, waterresistant cone and a lightweight, high BL, neodymium motor system with inside/outside coil windings for improvedheat transfer. An aluminium demodulating ring reduces distortion and improves midrange clarity at high levels andincreased excursion is available via a triple roll surround and deep motor structure. The new HF driver utilises atitanium diaphragm with controlled break-up modes for improved sonic performance at high frequencies and thecrossover design and LF cone profile have been optimised to match the directivity of the HF horn and LF sectionthrough the crossover region.
TYPECompact, two-way passiveFREQUENCY RESPONSE (5) 55Hz-18kHz ± 3dB-10dB @ 45HzDRIVERS15” (380mm)/3” (75mm) voice coil, neodymium magnet LF driver1.4” (35mm) exit HF compression driverRATED POWER (2)400W AES, 1600W peakRECOMMENDED AMPLIFIER MA3.0SENSITIVITY (6)100dBMAXIMUM SPL (9)126dB continuous, 132dB peakNOMINAL IMPEDANCE8 ohmsDISPERSION (-6dB)80 ̊ horizontal, 50 ̊ verticalCROSSOVER1.4 kHz passiveENCLOSURE68 litre, multi-laminate birch plyFINISHTextured black paintPROTECTIVE GRILLEBlack perforated steelCONNECTORS2 x Neutrik NL4PIN CONNECTIONSFR+,- : 1+,1- .
