OVERALL SYSTEM
|
||||
|
• Number of channels: 2 Channel
• Modulation Mode: pi/4DQPSK • Carrier Frequency Range : UHF600-850MHz (Digital) • Occupied bandwidth:300KHz • Audio Frequency Response : 50-15KHz
•Transmission Rate: 204.8Ksps
• Receive mode: Digital decryption receive (Fix frequency) • Working Range: 50~70Meter • Receiver Material: Metal with display • Handheld Material: Metal with display |
||||
|

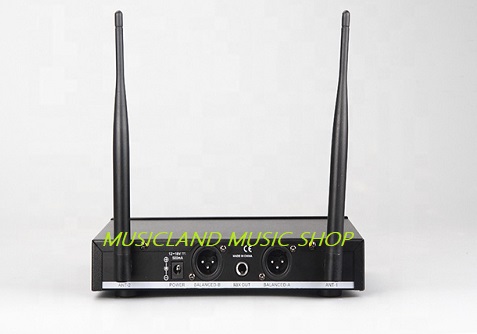

RECEIVER
|
||||
|
• S/N radio: >90dB
• Sensitivity: -94dBm
• Power Supply: AC220V/45-60HZ
|
||||
|
TRANSMITTER
|
||||
|
• Transmit mode:Using encrypted word transmission
• Dedicated data channel: 7kbps, internal CRC check
• Capsule: Dynamic
• Transmitting power: ≤10dBm
• Frequency stabilization: ±0.005%
• Battery: AA 1.5V*2
|
