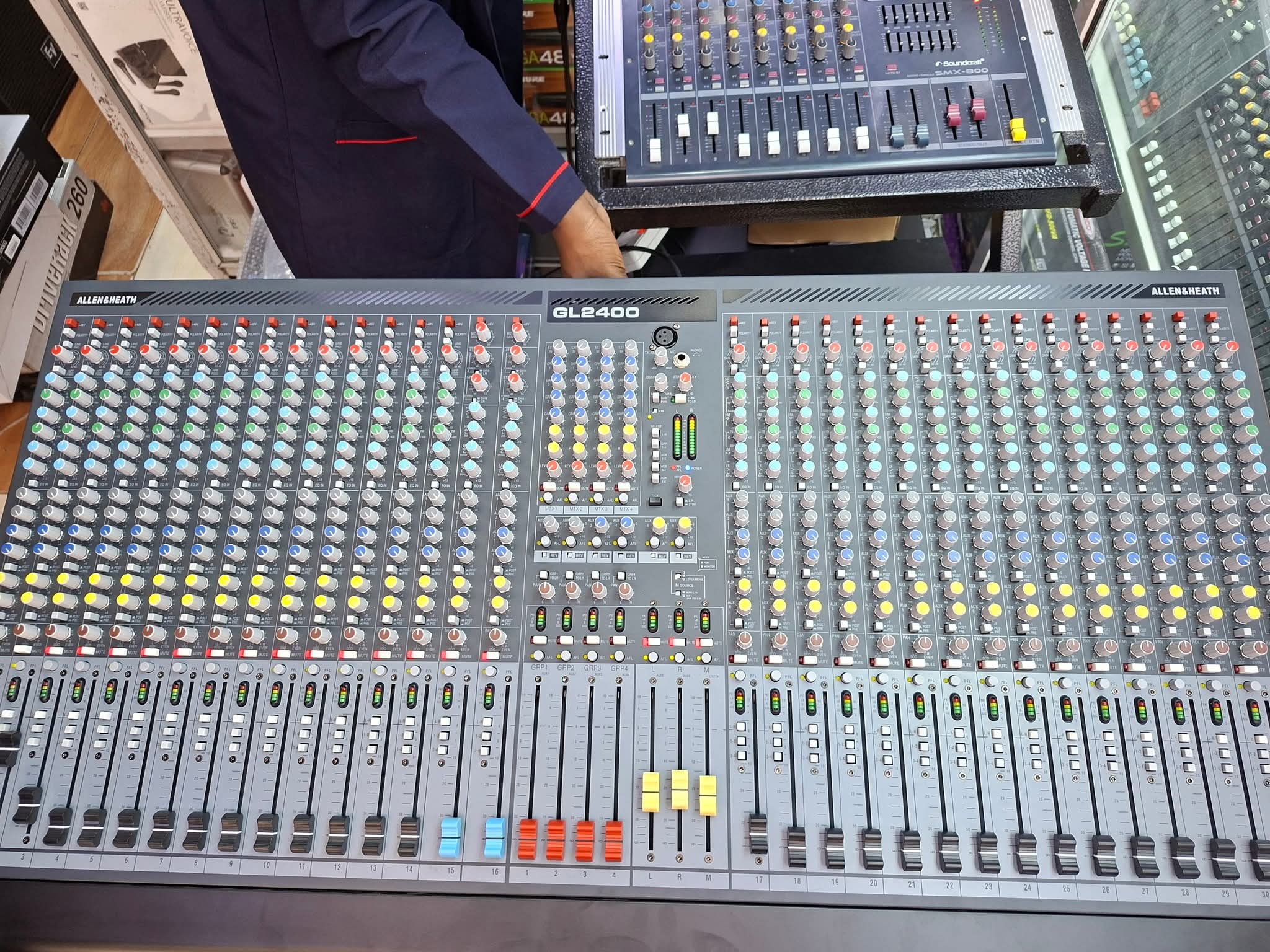

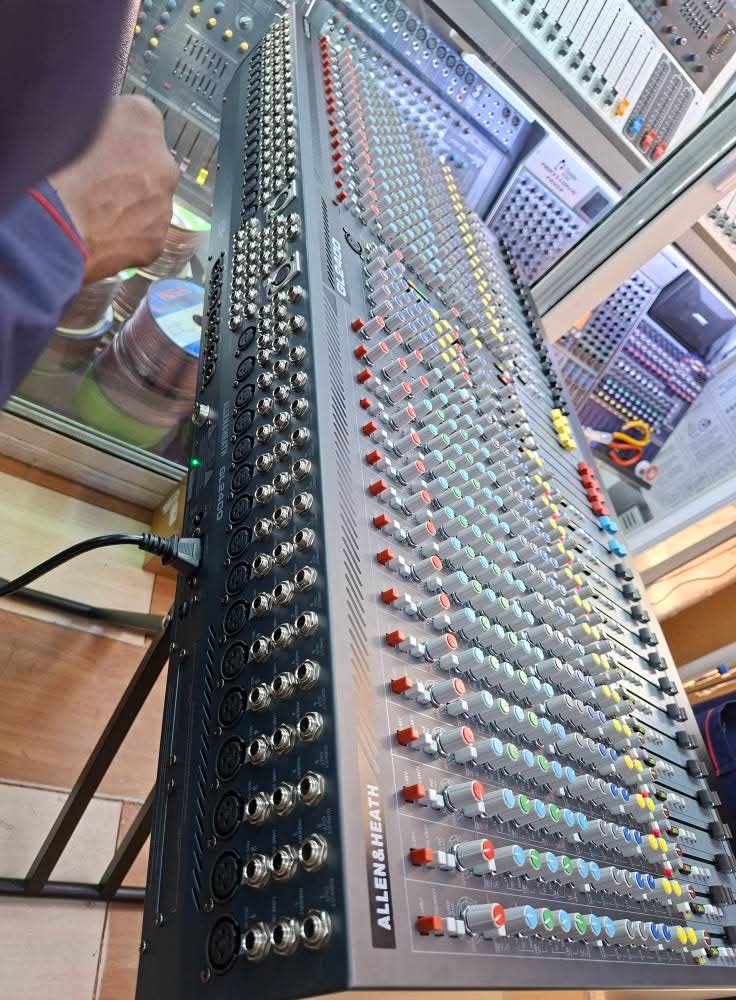

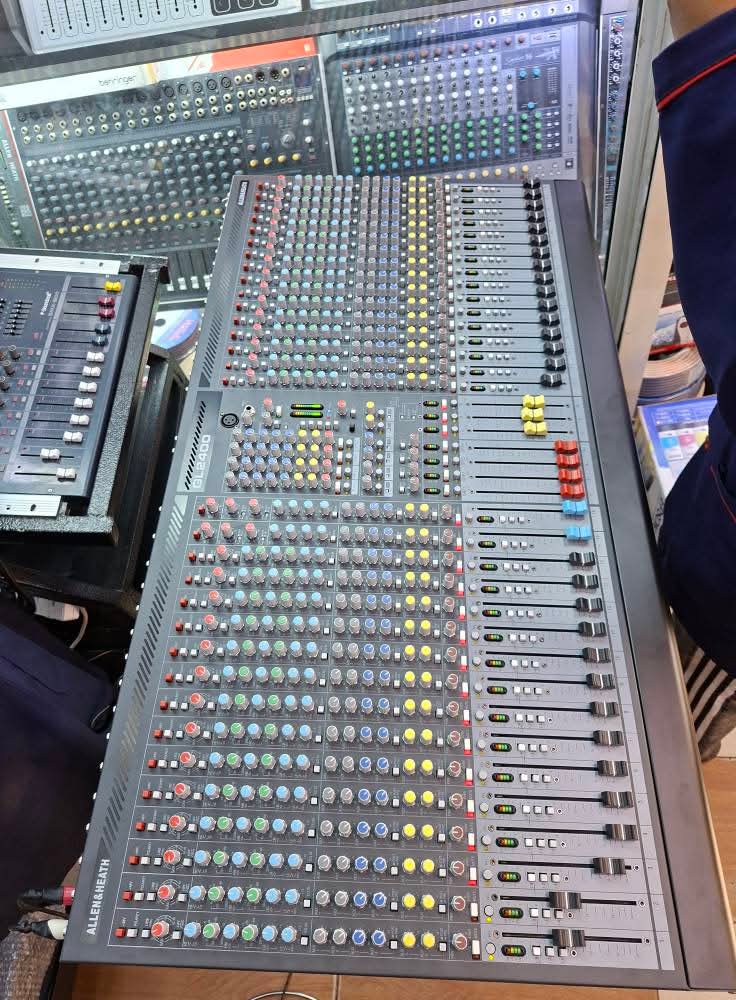

32-channel Mix Console with Six Aux Sends, 7 x 4 Matrix, and Extended Headroom Preamp Design
L/R and M main outputs
Four audio groups with pan control
Six auxiliary sends with per-channel pre/post fader switching
Two stereo channels each with mic and dual stereo line inputs
7x4 matrix
Proper dual functionality for FOH and/or monitor mixing
M can be configured as L/R sum, wedge, or aux-fed sub or C master
Recording capable with channel direct outputs
Matrix external inputs with level trims and common input capability
Stereo channel line inputs can be independently routed to L/R
Stereo channel mic input breakpoints for cross patching into matrix
Responsive 4-band, 2-sweep EQ
100Hz channel highpass filters
Individual phantom power and polarity switching
Dedicated Channel, Master and stereo Monitor meters
Internal jumper plugs for pre/post-EQ aux, direct out and other options
Mutes, meters and AFL on all fader masters
Assignable talkback
1kHz oscillator and pink noise generator
2-track monitoring and replay to L/R
Headphones and local monitor outputs
Electronically balanced XLR outputs with +26dBu drive capability
Preamp +34dBu maximum input capability for mic or line
Ultra low-noise mix head amp design
Internal power supply with MPS12 backup supply input (16 to 32 models)
100mm dust protected faders
Metal jacks, gold-plated XLRs, sealed pots and switches
Individual circuit card assembly with nutted pots
Solid copper bus bar grounding
Optional Sys-Link V2 console linking
4-pin XLR lamp sockets
